2026 Electric Bicycle Wheel Conversion Kit (Integrated Controller), 27.5–29" / 700C, 48V 1000W/1500W — Shipping from the UK.

Packing List

Note: The conversion kit does not include a battery. (If you require a battery, please contact us regarding the additional cost.)

1 * Motor Wheel
1 * Tire
1 * 7-Speed Freewheel
1 * 160mm Disc Brake Rotor
1 Pair * Brake Levers with Power Cut-off
1 * T5 Color Display
1 * 12-Magnet Pedal Assist Sensor
1 Set * Twist Throttle
1 Set * Cables

CSC Rim

CSC Rim (Compatible with V-Brakes and Disc Brakes)

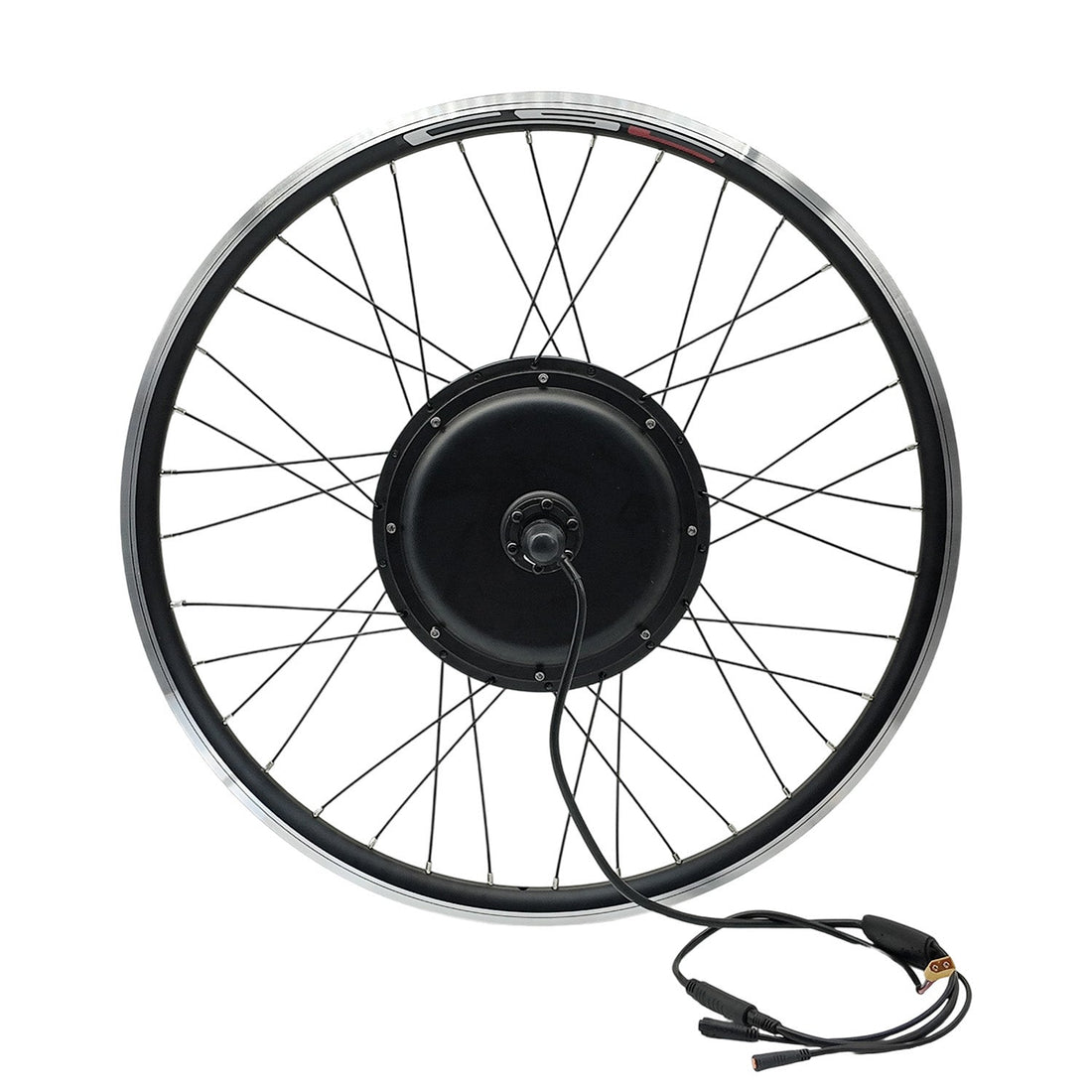

Drive Wheel

Waterproof Rating: IPX5
1. Maximum Motor No-Load Speed Range:
48V 1000W: approx. 45–55 km/h
48V 1500W: approx. 50–60 km/h
(Actual speeds will vary depending on wheel size, road and weather conditions, and rider weight.)
2. Hub Motor:
Brushless, gearless hub motor for 48V 1000W / 1500W systems
3. Rim: Double-wall aluminum alloy
CSC Rim: 25 mm inner width, 30 mm outer width
MTX Rim: 30 mm inner width, 39 mm outer width
4. Motor Dropout Spacing:
Front Wheel: 100 mm
Rear Threaded Wheel: 135 mm
Rear Cassette Wheel: 138 mm
5. Torque:
55 Nm for 1000W
60 Nm for 1500W
6. RPM:
470 for 48V 1000W
540 for 48V 1500W



T5 Color Display

Product Features
Display Functions:
The meter displays current speed, TRIP (DST)/ODO, power level, time, temperature, gear, and motor power.
(2) Control/Setting Functions:
Power switch control, 6 km/h assist control, wheel diameter setting, speed limit setting, meter sleep mode setting, backlight brightness setting, and voltage setting.

Controlador

Controlador integrado
Controlador MOSFET CSC 12
Apto para: Rueda de motor de 48V 1000W, Pantalla SW900
Corriente nominal: 22A, Corriente máxima: 44±1A
Tamaño: 172*83*42 mm

Controlador MOSFET CSC 15
Apto para: Rueda de motor de 48V 1500W, Pantalla SW900
Corriente nominal: 35A, Corriente máxima: 70±1A
Tamaño: 210*83*42 mm

PAS

12 PAS magnéticos

Accelerator

Twist grip throttle

Palanca de freno con corte de energía
