Electric Bike Conversion Kit 20 24 26 27.5 29 Inch 700C eBIKE Conversion Kit 36V 48V Front Rear Bicycle Hub Motor Wheel
Back to products

E-Bike Kits

Electric Bike Conversion Kit 20 24 26 27.5 29 Inch 700C eBIKE Conversion Kit 36V 48V Front Rear Bicycle Hub Motor Wheel

€188,00
Factory directR&D and production since 2011
Warehouse optionsChina, EU and UK stock when available
SupportContact us before purchase for compatibility
Description

eBIKE Conversion Kit 26-29 Inch 700C Electric Bicycle Conversion Kit 48V 1000W 1500W 36V 250W Front Rear Bike Hub Motor Wheel

Packing List


1* Front or Rear motor wheel

1 * DC Controller

1 * Controller Bag

1 Pair * Power cut-off Brake lever

1 * SW900 Display

1 * 8 Magnet Pedal Assistant Sensor

1 * Twist Throttle

Product Details

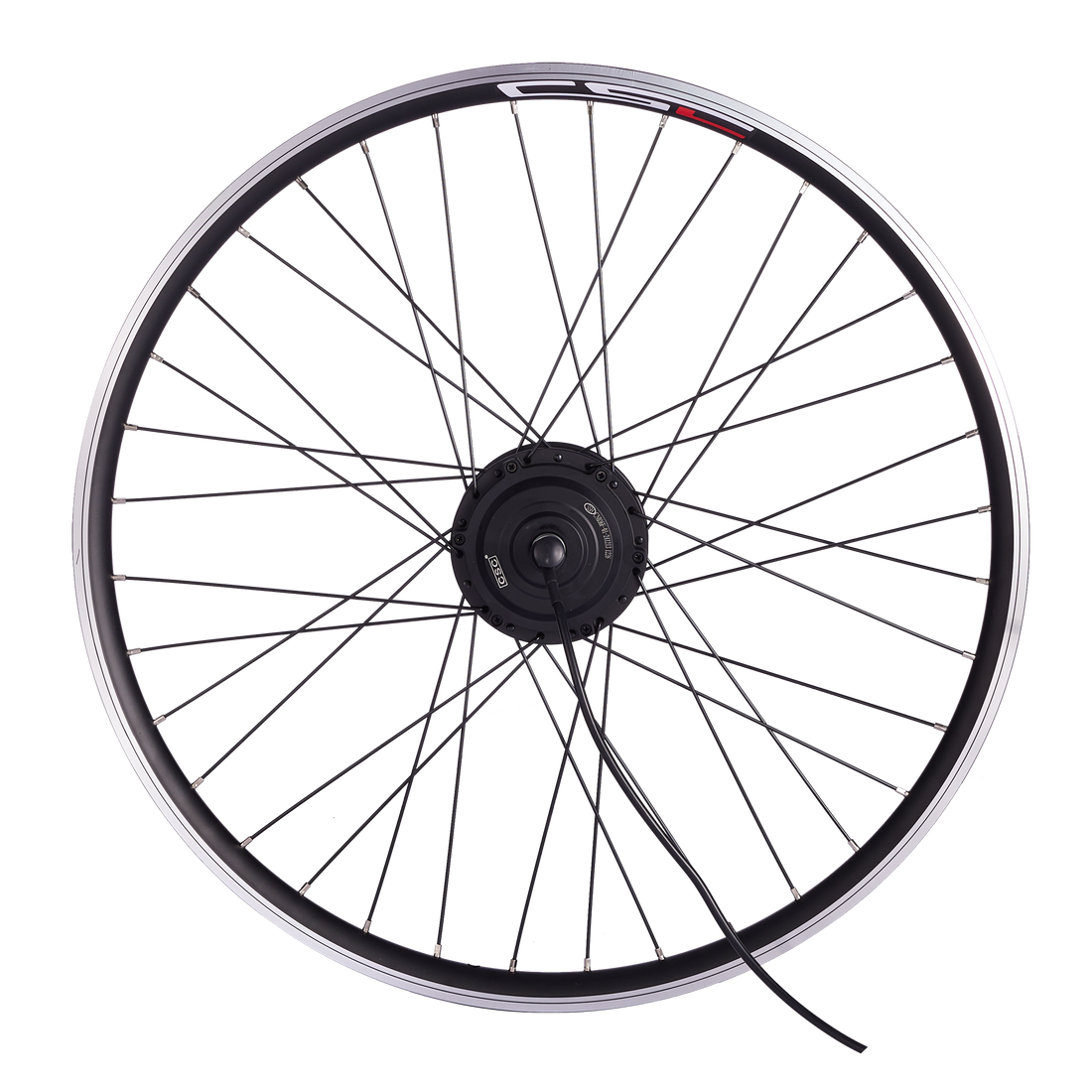

1. Motor wheel
1).48V motor wheel
a. Full No-load Speed:
48V 500W  about 40-50km/h

48V 1000W about 45-55km/h

48V 1500W about 50-60km/h

b. Rim: Double-wall Aluminium Alloy Rim /25mm inner width
c. Hub Motor: 48V Brushless Non-gear Hub Motor
d.Rear wheel Bottom bracket: 135mm-142mm
Front dropout 100mm
e.Rotating speed
48V 500W/1000W:470RMP
48V 1500W:540RMP
f.torque
48V 1000W: 30-40NM
48V 1500W: 35-45NM
2).36V motor wheel

a. Full No-Load Speed: about 20-35km/hour

b. Rim: Double-wall Aluminium Alloy Rim/ 25mm inner width

c. Hub Motor: 36V  Brushless geared hub motor

d. Wheel dropout :Front 100mm/ Rear 135mm-142mm

e.Rotating speed

36V 250W/350W: 320 RPM

36V 500W: 350 RPM

f.torque: 35-45NM

2. Controller

CSC 6 mosfet controller
Fit for: 36V 250W/350W/500W motor wheel ，SW900 Display
Rated current: 15A ,Max current: 30±1A
Size: 100*64*32mm

CSC 12 mosfet controller
Fit for: 48V 1000W motor wheel，SW900 Display
Rated current: 22A , Max current: 44±1A
Size: 149*83.3*42mm

CSC 15 mosfet controller
Fit for: 48V 1500W motor wheel ，SW900 Display
Rated current: 35A , Max current: 70±1A
Size: 118.2*82.33*41mm




Shipping & returns

Shipping time depends on warehouse location and destination. Contact us for urgent orders, OEM orders, or compatibility checks before purchase.

Compatibility help

Please confirm axle standard, brake type, cassette body, tire size, and riding purpose before ordering. Our team can help match the correct wheelset or kit.
